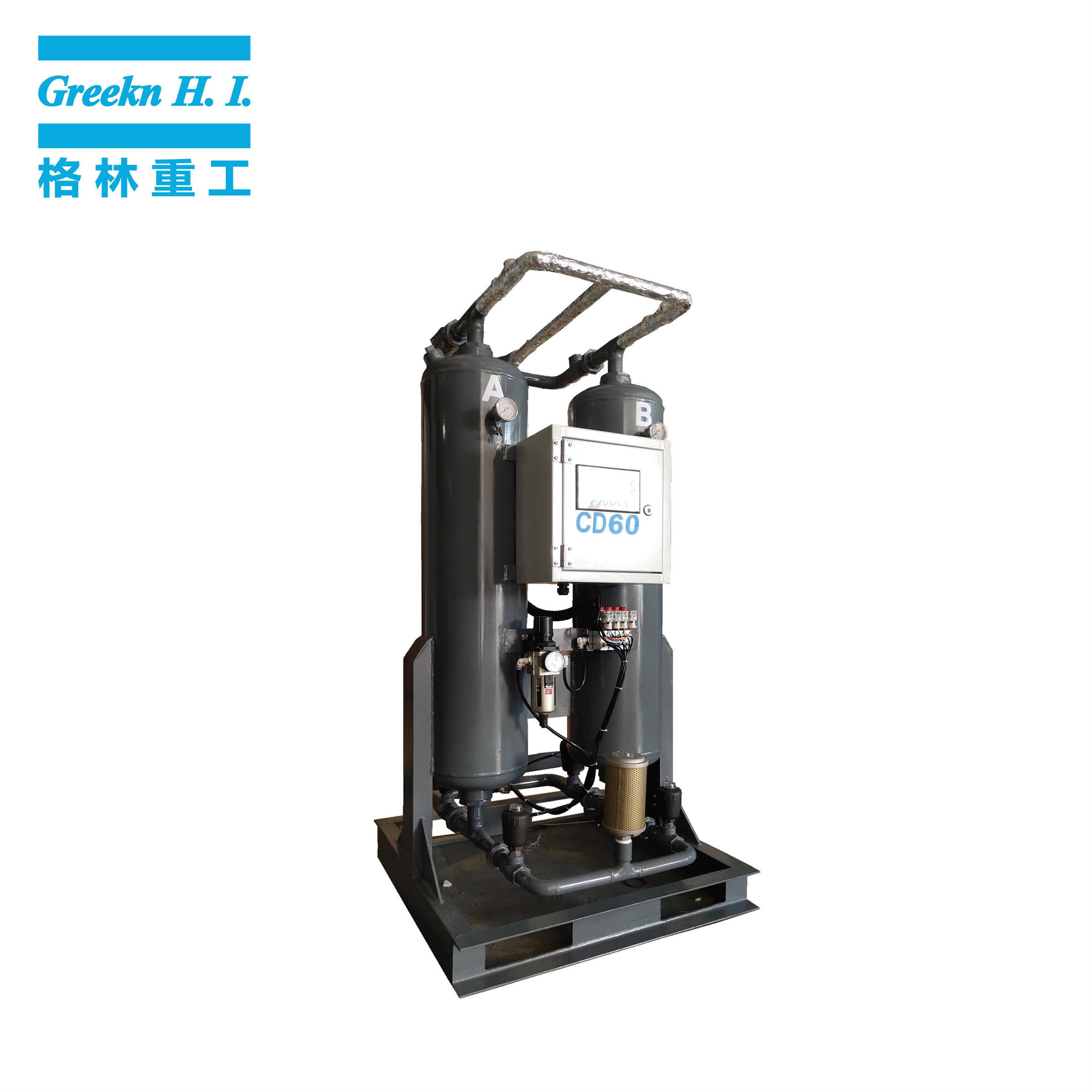

Operation principal:
Desiccant, naturally attracts moisture from gases and liquid. The desiccant becomes saturated as moisture is adsorbed on the surface.The desiccant can be regenerated.
Our strength:
1.The dew point of pressure can be reached from 40℃ below zero to 70℃ below zero;（heating）
2.The quality of air is up to the standard of ISO8573.1 Class 2.1;

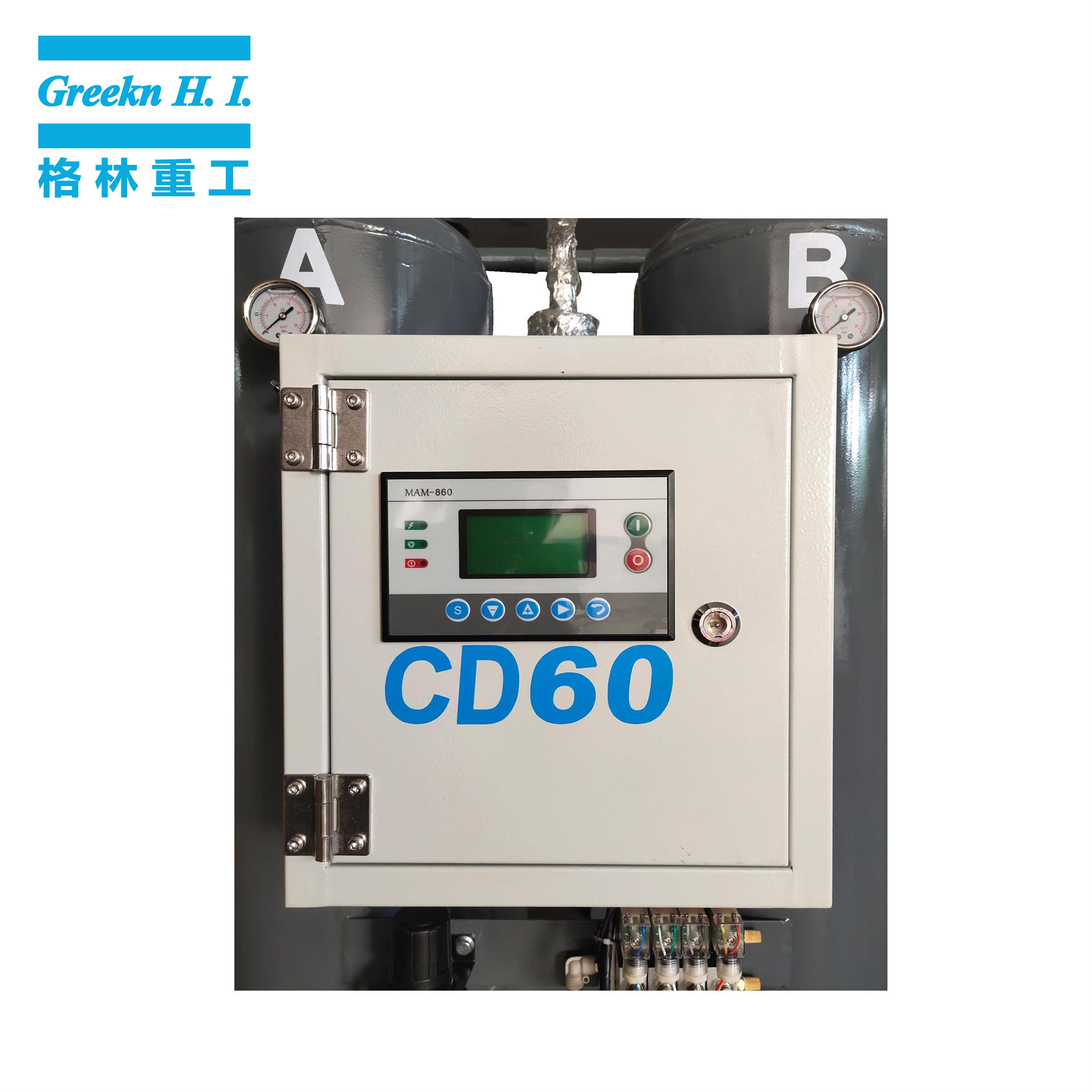

3.Controlled by computer, safe and accurate.
4.Distant control or central integrated control(optional);
5.Warning for the abnormality of dew point(optional);
6.Air with little oil content;
7.Without coolant,environment-friendly, free from influence by environment;
8.Energy conservation,free of the effect by climate.
Specification
|
Model |
CD10 |
CD20 |
CD30 |
CD50 |
CD75 |
CD100 |
CD150 |
CD200 |
CD250 |
CD300 |
CD450 |
CD500 |
|
|
Volume |
㎥/min |
1.3 |
2.5 |
3.8 |
7.0 |
10.6 |
14.5 |
18 |
24 |
29 |
36.5 |
45 |
53 |
|
SCMF |
43 |
88 |
135 |
240 |
317 |
459 |
635 |
812 |
987 |
1200 |
1593 |
1876 |
|
|
Air outlet and inlet pipe diameter |
|
1/2" |
1" |
3/2" PT |
2"PT |
3"PT |
4"PT |
||||||
|
Overall dimension |
Height |
1200 |
1800 |
1900 |
1850 |
1950 |
2100 |
2300 |
2400 |
2500 |
2600 |
2600 |
2600 |
|
Width |
550 |
650 |
650 |
810 |
930 |
1000 |
1120 |
1250 |
1300 |
1300 |
1750 |
2900 |
|
|
Depth |
450 |
550 |
550 |
600 |
650 |
800 |
900 |
1000 |
1000 |
1200 |
1500 |
1600 |
|
|
Net weight |
kg |
130 |
240 |
280 |
320 |
410 |
530 |
680 |
850 |
1050 |
1300 |
1500 |
1850 |
Dew point of pressure: standard design 40℃ below zero（athermal）
Regenerated volume: 12%-15%
The maximum operating condition: inlet temperature: ≤40℃ Pressure:8.00bar
Voltage:
220V/1phase50/60HZ
NOTE:
1.The volume should be amended while beyond the operating condition;
2.Order for special request of pressure and temperature accepted;
3.Order for subfebrile and regenerated type accepted;
4.Other type plz contact us.
