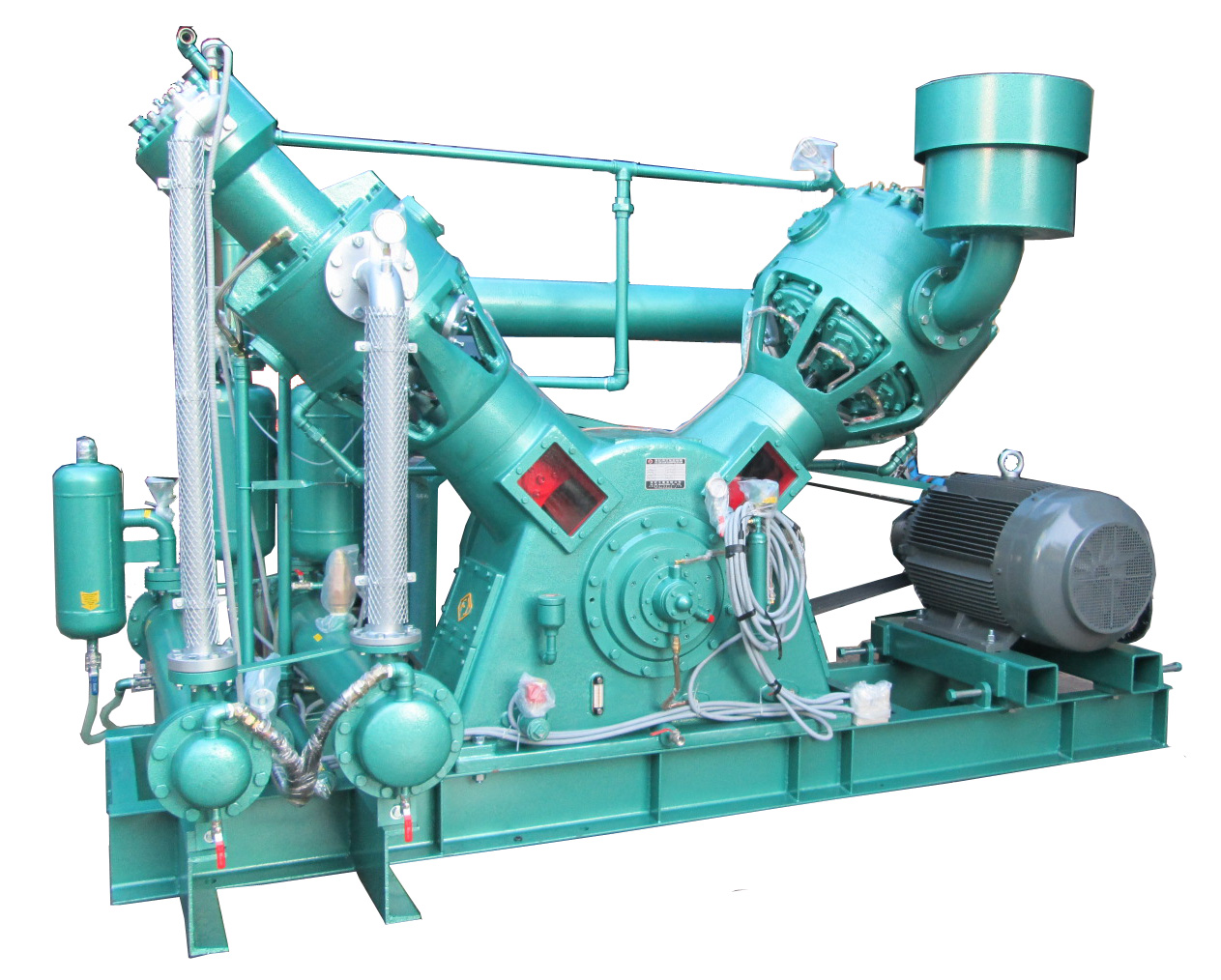

Oil free high pressure water cooling compressor
  • clicks:375
  • Product Category: Products More products
  • product description:
 [←]  Oil free water injected s
 [→]  DM12/10 Cummins Engine Mobile Screw Air Compressor
  • Oil free high pressure water cooling air compressor

    Features of high pressure oil free compressor HC series

    1.The cylinder and cylinder head spay cover process with Teflon which will help parts free from getting rust easily and extend the service life.

    2. Coolers and pipes are all made of stainless steel. The advantage is the high compressed air will more clean. That will be easier to control quality process.

    3. The first stage and second stage of cyclone separator are installed electronic automatic water drainer, avoiding the processing steam to damage spare parts.

    4. The third section of exhit valve has the over temperature control system to avoid the damage of exhaust valve because of the high temperature.


    Main data of HC series
    型号 工作压力 电机
    功率     		活塞变位量 缸径X行程X缸数 回转数 气桶

    Model     		Working
    pressure
    Power

    Displacement
    Bore*Stroke*No.
    R.P.M.
    Air Tank
      Mpa kW m3/min ft3/min m3/min ft3/min Фmm*mm*No.   mm*Lmm m3 No.
    HC30 2.5  30 4.9 173 3 106 300*180*1
    300*180*1     		385 490*1825 0.304 1
    HC37 2.5  37 6 212 3.7 131 300*180*1
    130*180*1     		470 490*1825 0.304 1
    HC55 2.5  55 9.2 325 5.72 202 300*180*2
    130*180*1     		360 490*1525 0.5 2
    HC75 2.5  75 12.2 431 7.6 268 300*180*2
    130*180*1     		480 490*1825 0.608 2
    HC90 2.5  90 14.8 523 9.2 325 360*180*2
    145*180*1     		405 490*1825 0.608 2
    HC110 2.5  110 17.1 604 10.6 375 410*180*2
    145*180*1     		360 490*1825 0.608 2

    HC37T 4.0  37 4.77 167 3.8 134 260*180*2
    230*180*1
    130*180*1     		250 490*1825 0.304 1
    HC45T 4.0  45 5.92 205 4.6 163 260*180*2
    230*180*1
    130*180*1     		310 490*1825 0.304 1
    HC55T 4.0  55 7 247 5.6 198 270*180*2
    230*180*1
    130*180*1     		340 490*1525 0.5 2
    HC75T 4.0  75 9.5 328 7.4 261 360*180*2
    260*180*1
    130*180*1     		260 490*1825 0.608 2
    HC90T 4.0  90 11.7 402 9.1 321 360*180*2
    260*180*1
    130*180*1     		320 490*1825 0.608 2
    HC110T 4.0  110 13.7 483 10.9 385 410*180*2
    270*180*1
    145*180*1     		290 490*1825 0.608 2
    HC132T 4.0  132 15.9 562 12.7 449 410*180*2
    260*180*1
    140*180*1     		335 780*1524 0.66 2
    HC160T 4.0  160 17.4 615 14 494 410*180*2
    260*180*1
    140*180*1     		367 780*1524 0.66 1
    HC185T 4.0  185 23.2 821 18 635 500*180*2
    300*180*1
    145*180*1     		330 975*1850 1.3 1
    HC225T 4.0  225 27.4 968 21.3 754 500*180*2
    300*180*1
    145*180*1     		388 975*1850 1.3 1
